Large Span Steel Clinker Silo Bin Space Frame Structure Arch Roof Coal Bunker Storage
Product Description
Product Description
Large Span Steel Clinker Silo Bin Space Frame Structure Arch Roof Coal Bunker Storage

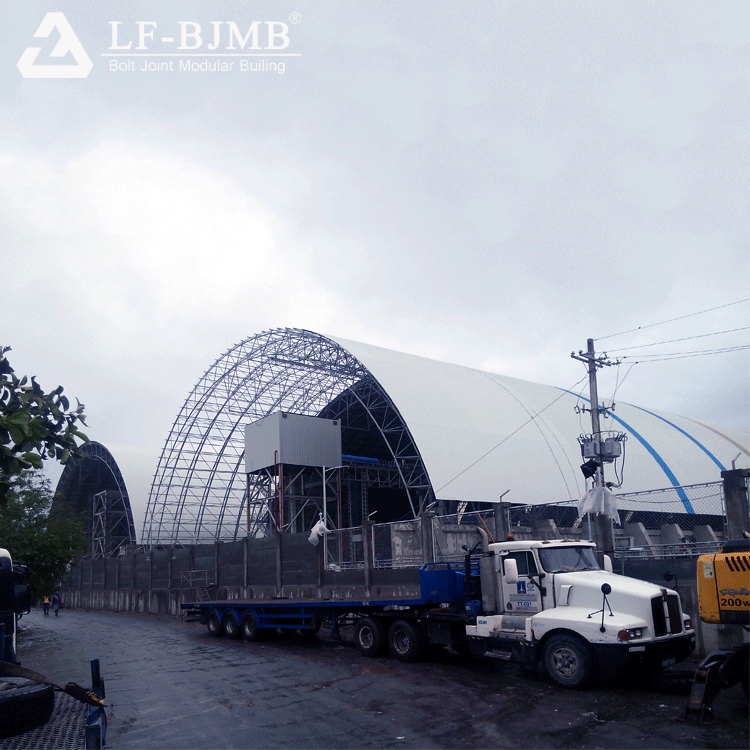

This project is about the Space Frame Roofing of Coal Storage for the Power Plant in Batangas, Philippines.

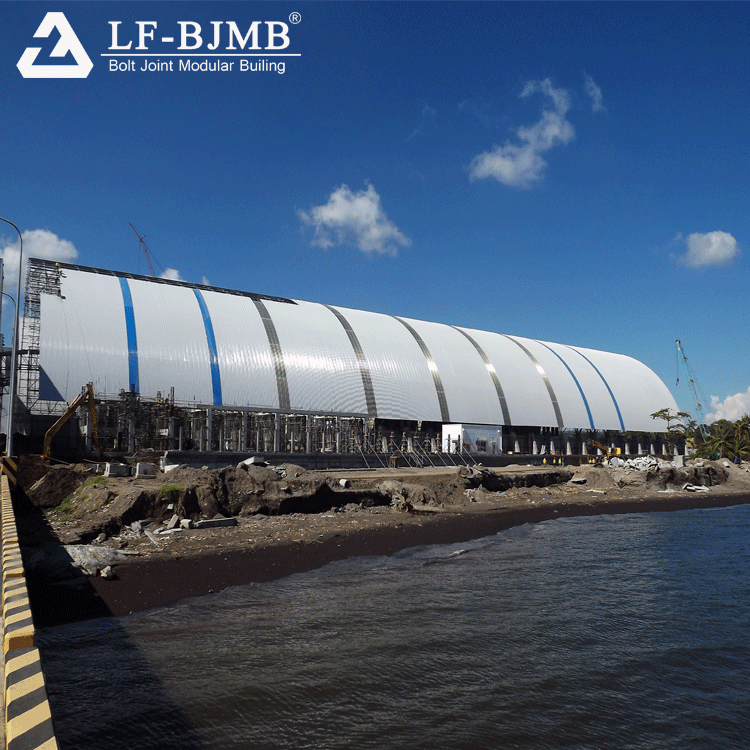

The construction structure is in barrel shell shape, full-width is 64.572m，full-length is 175m, height is 25.957m, net span is 61m ,foundation height is 4.5mm and construction area is 11300.1m2.

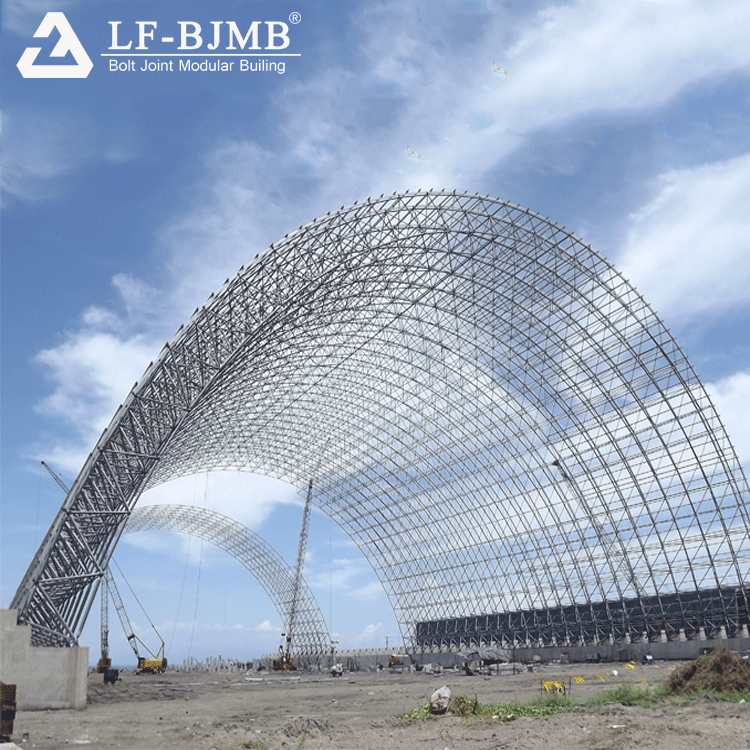

The space frame is in square pyramid bolt ball node structure and barrel shell shape, with the bearing way of bottom supporting, and total 52 column points.
The space frame is in square pyramid bolt ball node structure and barrel shell shape, with the bearing way of bottom supporting, and total 52 column points.
The bottom foundation of the space frame is in reinforced concrete structure, the dimension of upper chord grid is about 3.5mx3.546m, and bottom is about 3.5mx3.293m, thickness of the space frame is 2.5m.
we apply cold pressed C steel on the roof purlin, and the roof panel is color painted with pressed Steel Plate.
Product Paramenters
Hot Dip Galvanized Coal Storage Arch Steel Space FrameProject name | Large Span Steel Clinker Silo Bin Space Frame Structure Arch Roof Coal Bunker Storage | ||||||
Span | 61m | ||||||
Height | 25.957m | ||||||
Foundation height | 4.5m | ||||||
Wind load | 250kph | ||||||
Seismic load | 4(Z=0.4) | ||||||
Steel material | Q235B/Q345B,45#,40Cr | ||||||
Certificate | ISO, CE, SGS | ||||||
Cladding system | Color steel sheet with PVDF finish treatment & FRP natural lighting roof sheet | ||||||
Delivery period | 35~40 Days | ||||||
Project installation service | Engineers on-site installation guide. | ||||||
Warranty | 1 year | ||||||
Manufacturing Technique
FACTORY PROCESSIING SHOW
The modernization of professional Steel Structure production process.
Installation Instructions
Product packaging
Packing & Transportation
* Every LF structural member gets a sticker with identifying information. Unique mark, component number, fabrication. parameters, and QR coding ensure that all component information is available exactly when and where required.
* Small parts packed in a wood carton.
* Big parts packed by a Steel Frame which is convenient for container unloading by fork lift or crane on site.
* Small parts packed in a wood carton.
* Big parts packed by a Steel Frame which is convenient for container unloading by fork lift or crane on site.
* Delivery Goods in the factory and transported to seaport by truck.
* All goods will be loaded into the container at port Warehouse .
* All goods will be loaded into the container at port Warehouse .
Why Choose Us
Company Profile
Original of LF-BJMB
LF was established in 1994, and more than 600 employers. LF owns the perfect process of design, manufacturing & construction.
* Long-span:
* Fantastic:
* Long-life:
* Facilitated:
Our competitiveness arises from advanced engineering technology of spatial structures shown as below:
* Long-span:
the structure can span up to 200 meters without internal pillars to maximize internal space.
* Fantastic:
flexible structure, variable shape,large span & loading; fantastic appearance; eco-friendly; optimized minimum-consumed design.
* Long-life:
durable materials & finishes (galvanized & Stainless Steel, composites, factory-applied finishes) for lower price
with the same lifetime.
with the same lifetime.
* Facilitated:
fully mechanical/bolted joint leads to easy construction and low cost; considerate packing for transportation and assembly process.
