Glazed Tile Metal Roof Cold Roll Forming Machine
Payment Type: | L/C,T/T |
---|---|
Terms of Trade: | FOB,CIF |
Min. Order: | 1 Set/Sets |
Delivery Time: | 30 Days |
Packaging: | one 20ft container for loading one set machine with manual decoiler |
---|---|
Productivity: | 30 Sets/Month |
Brand: | Hongyuan |
Transportation: | Ocean |
Place of Origin: | Hebei,China |
Supply Ability: | 30 Sets/Month |
Certificate: | ISO |
Port: | Tianjin Sea Port |
Basic Info
Model No.: Glazed
Product Description
Glazed Tile Metal Roof Cold Roll Forming Machine

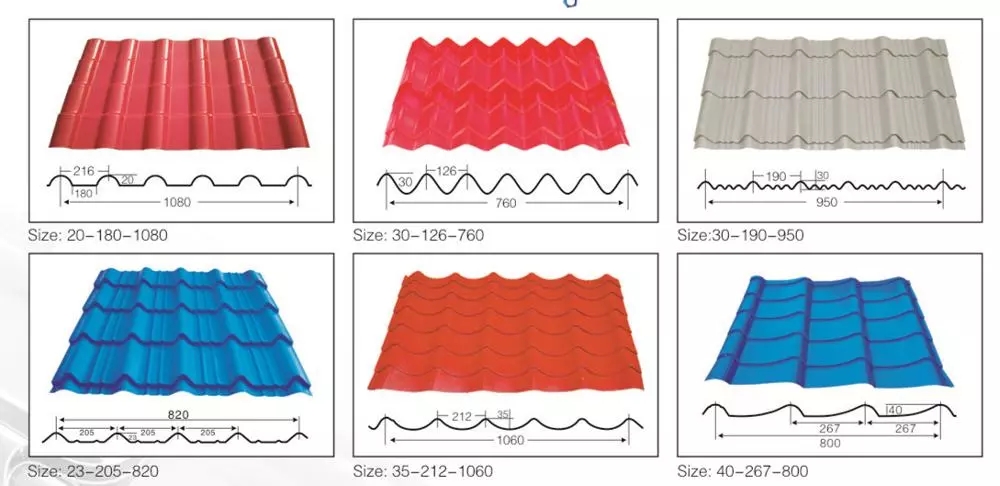

Colored Steel Glazed Tile are beautiful and durable, with advantages of saving space and easy operation.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.We can produce the special roof tile roll forming machine, send your drawing to us, we can design for you.
We provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
Glazed Tile Roofing Panel Roll Forming Machine | ||
coil material | type | Colored Steel Plate, Galvanized Board, Aluminum Plate |
width | 1000 mm/1200 mm (according to customer requirements and profile drawing) | |
thickness | 0.3-0.8 mm | |
forming device | shaft material | 45#steel-high quality steel, diameter 70 /75 mm |
roller material | 45# steel with chrome coating | |
roller station | depends on final design | |
Main frame | 300 / 350 H steel | |
chain transport | 1" | |
board thickness | 16 mm | |
weight | around 3.5 T(depends on final design) | |
dimension | 6500 mm*1300 mm*1100 mm(depends on final design) | |
control system | PLC control system | |
total power | 5.5+4 kw (depends on final design) | |
voltage | 380 V,50 HZ,3 phascs or as your need | |
productivity | 2-4 m/min(depends on final design) | |
life time | over 10 years |

Glazed Tile Forming Machine Display :
Cutting System
1. Cutting press is 20 tons
2. Blade and mold material:GCR12steel with quenched treated 60-62℃
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system
Roller System
1. Material: high grade NO.45 forged steel.
2. Roller station: 11-16(depends on final design)
3. Thickness of feeding material:0.3-0.8 mm
Automatic Control System
1. Screen: touch screen or text screen
2. Automatic length measurement
3. Automatic quantity measurement
4. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
5. Length inaccuracy can be amended easily.
Manual Decoiler
2 Steel coil width: 1300 mm
3 Maximal out diameter: 1250 mm
4 Coil placement in the coil holder: hydraulic hoist
5 Working speed: adjustable
Company Profile
Botou Hongyuan Forming Machine Co.,Ltd has been established in 2005 as a professional manufacturers of roof tile roll forming machine . We use AUTO CAD design software. With more then 10 years of experiences and strict quality control, our roof sheet roll forming machines meet International Standard. We are the leading manufacturer and reported of roll forming machine in China. We manufacture various kinds of roof tile roll forming machine for producing the following products.Our Roll Forming Machine contain Glazed Roof Tile Roll Forming Machine,Trapezoidal Roll Forming Machine ,Corrugated Roll Forming Machine , Double Layers Roll Forming Machine ,C Z Purlin Roll Forming Machine , Steel Structure Floor Deck Forming Machine etc.
Packaging Details:
1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film

Botou Hongyuan Forming Machine Co.,Ltd
Our company is a Chinese professional roll forming machine manufacturer. We provide an extensive line of products, including roof and wall panel machine, tile roof machine,CZ purlin forming machine, floor decking machine, and other associated equipment. The success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after sales service. What we value is reputation and service, what we sell is quality and technology. We warmly welcome old and new clients from all over the world to visit our company and establish business relationships with us. We do believe our mutual cooperation will create a brilliant future.
Company Info
- Company Name: Botou Hongyuan Forming Machine Co.,Ltd
- Product/Service: Roof Tile Making Machine , Floor Deck Forming Machine , CZ Purlin Roll Forming Machine , Light Steel Keel Machine , Highway Guardrail Roll Forming Machine , Steel Pipe Making Machine
- Contact Person: Mr. victor zhang
- Tel: 86-0317-15100766986
